Size and Weight

Dimensions (W x H x D)

178 x 50 x 119 mm

Weight

0.7 kg

General Features

USB

Yes (Front)

AUX

Yes (Front)

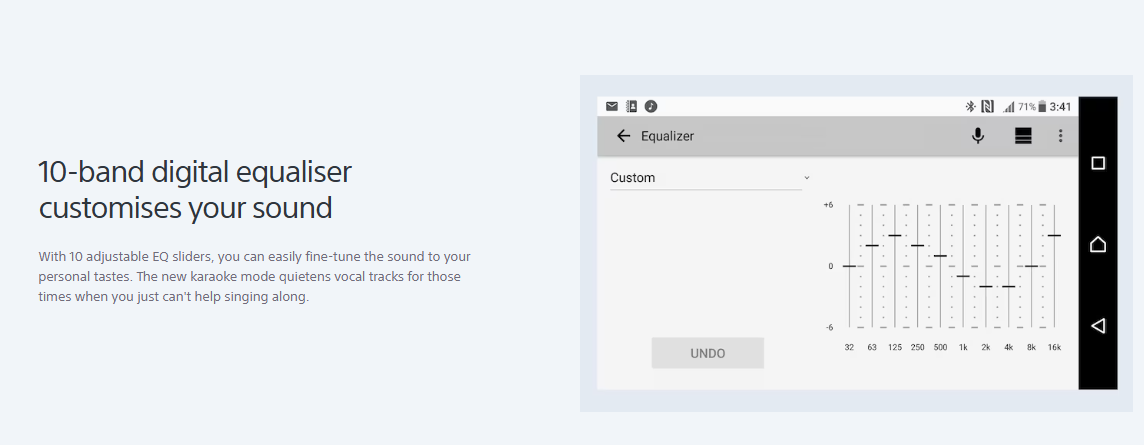

EQ

Yes (EQ10)

High Pass Filter

Yes (80/100/120)

High Voltage Pre Out

No

Low Pass Filter

Yes (80/100/120)

Subwoofer Direct Connection

Yes (Easy)

Digital Sound Enhancement Engine (DSEE)

No

ClearAudio+

No

DSO (Dynamic Stage Organizer)

No

Output Power

4 x 55 W

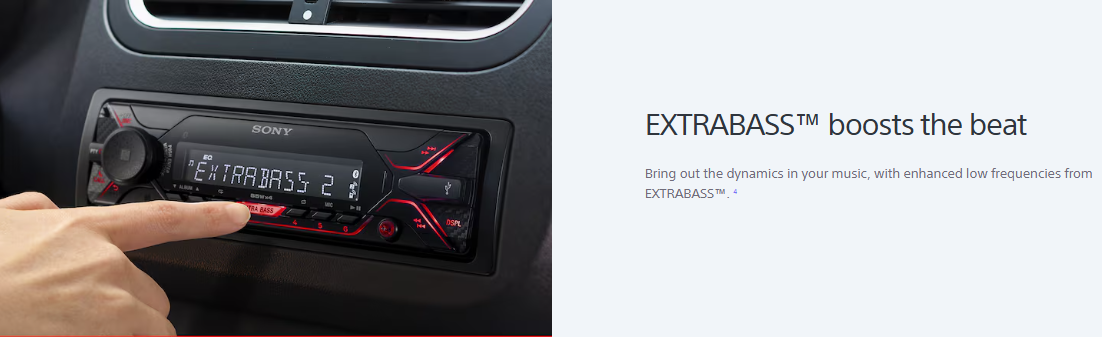

EXTRA BASS

Yes (1.2)

Pre Out

x 2 (Rear + Sub)

Rear / Sub initial

No

Rear Bass Enhancer

No

Sub Out

Yes

Time Alignment Preset

No

Tuner Features

Preset

FM18/AM12

RDS / EON

Yes

Panel Design

Display Colour (Colour Variation / Negative or Positive)

Black colour/Negative

Display Device (LCD / FL / OEL / TFT)

LCD (with Acryl)

Key Illumination

Blue

iPhone / iPod Music Playback Control via USB

List Browse

No

Passenger Control

No

Pause

Yes

Repeat

ALL/TRACK

Resume

Yes

Shuffle

OFF/TRACK

Bluetooth Features

External Microphone

No

Built-in Microphone

Yes

Mic Gain Adjustment

Yes (Low / Mid / Hi)

Version

Bluetooth® Version 3.0

Bluetooth Audio Features

Audio Codec

SBC, AAC

Audio Level Adjustment

Yes (-6dB – +6dB)

Cue / Rev

Yes

Pause (Bluetooth® Audio)

Yes

Track +/-

Yes

USB Mass Storage Device Control Features

Jump Mode

Yes

Compatible File Formats (Codec)

MP3, WMA, FLAC

List Browse

Yes

USB Device Control (Pause)

Yes

USB Device Control (Repeat)

ALL/TRACK/ALBUM

Resume

Yes

Shuffle

OFF/ALBUM/DEVICE

Remote Control

Supplied Remote Model Number

RM-X231

USB Profile

USB Mass Storage Device

Yes

USB Media Transfer Protocol

Yes

USB Android Open Accessory Protocol

Yes (2.0)

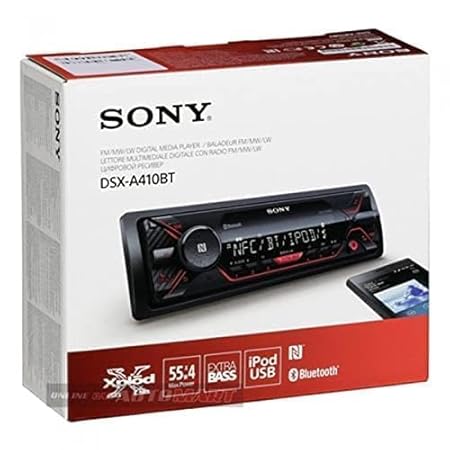

What's In The Box

• Trim Ring (Collar): Black (Not Painted)
• Panel Case
• Card remote: RM-X231
